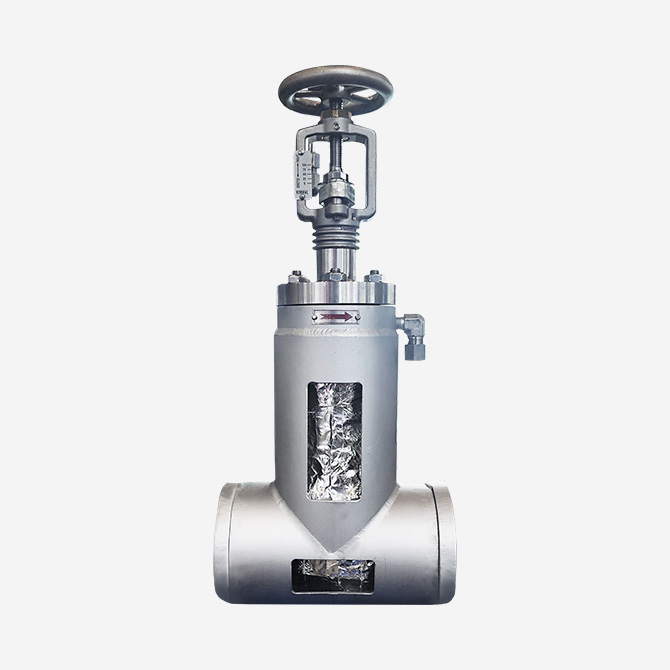

LH2 Manual Valve
Globe Valve Type
| MODEL | KM101H |
|---|---|
| Service | LH2 |
| Temperature Range | -268℃ ~ 80℃ (450℉ ~ 176℉) |
| Pressure Rating | Class 150 ~ 300 |
| Size Range | 1/2″ ~ 16″ |
| Body Type | Jacketed Globe with Bellows Seal |
| Flow Characteristic | Linear / Equal Percentage / Modified Linear |
| Material | Stainless Steel |
| Seat Material | Metal or Soft |
| Operation | HandWheel |
| End Connection | Butt Weld |
| Leakage Class | API598 / BS6364 / ISO 28921-1 / MSS SP-134 |
| Application | LH2 Carrier, Liquid Hydrogen Fueling Station |
Introduction
A cryogenic valve designed for precise control of fluid flow and reliable shut-off in liquid hydrogen systems.
This valve adopts a globe valve design to provide precise flow regulation and excellent shut-off performance, while its jacketed structure maintains a stable valve body temperature to ensure reliable operation in cryogenic environments.
This minimizes freezing and performance degradation caused by external temperature changes, enhancing system reliability and safety.
Through special materials and precise design, it maintains excellent sealing performance and durability even in cryogenic fluid environments such as liquid hydrogen, providing stable fluid control performance.
