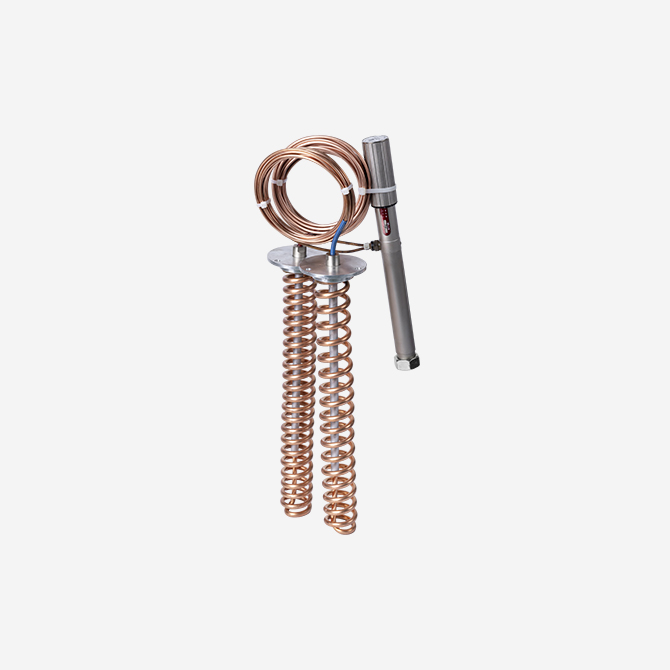

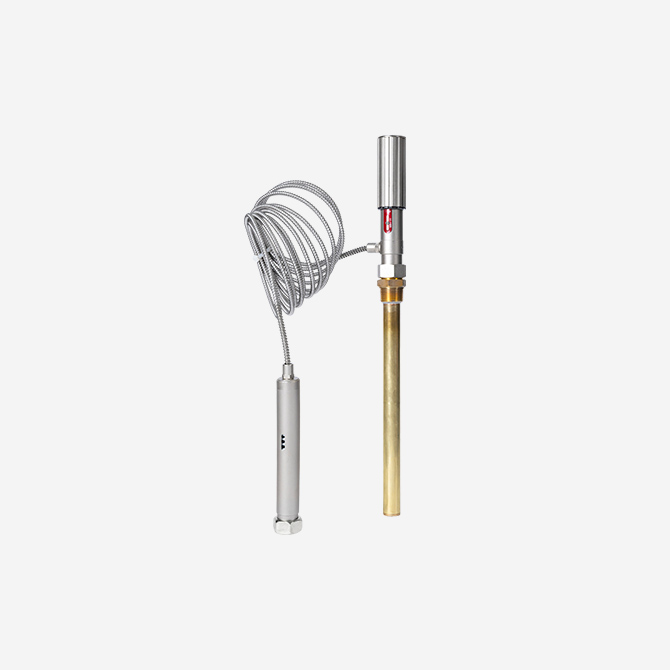

Heat Sensor
Heat Sensor
| MODEL | ASL/ABS |
|---|---|
| Material | Stainless Steel |
| Nominal Working Pressure | 1~16bar |
| Design Pressure | 20 bar |
| Capillary Tube Length | 3m / 5m |
| Temperature Range | 0°C to +160°C |
| Coil Type | Coil Type / Bar Type |
| Media for the Engine | Water, Oil |
| Application | Oil & Gas / Petrochemical / Chemical / Process Industry |
Introduction
The heat sensor is a temperature control device that precisely detects temperature changes and automatically protects the system.
When heat detected by the sensor causes the internal working fluid to expand, the resulting pressure is transmitted through a tube to the actuator section.
The piston and rod inside the actuator convert this pressure into mechanical force, precisely operating the valve stem, while the connected disc closes the seat to quickly shut off the flow of the heat-source fluid.
This effectively prevents excessive temperature rise in the heated medium and ensures the required temperature is maintained consistently.
