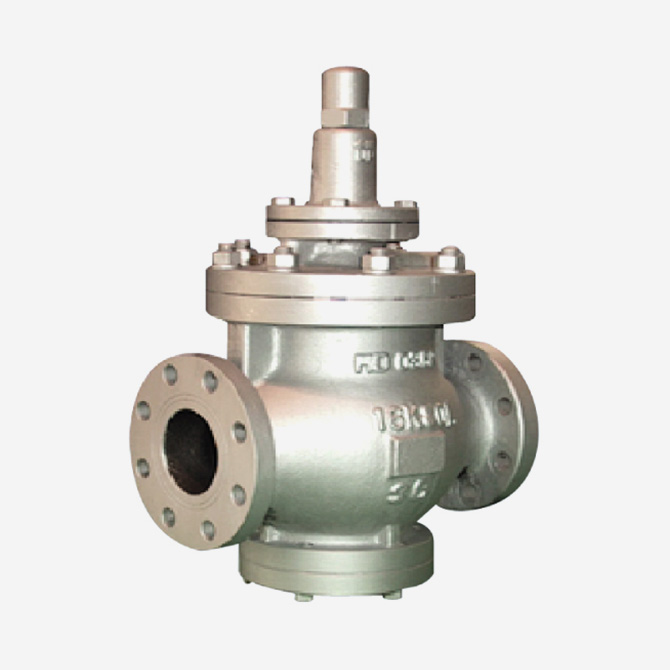

Primary Pressure Regulating Valve
Diaphragm Type
MODEL KA360-DP
타입 Diaphragm Type
Size 15A ~ 80A
Material Stainless Steel / SC480 / FCD / BC6
Nominal Working Pressure 16bar
Hydrostatic Test Pressure Working Pressure x1.5
Setting Range 1~16bar
Design Temperature 0°C to +150°C
Media Water, Oil, Steam
End Connection Flange
Option Internal Sensing
Application Engine Room of Ship / Oil & Gas / Petrochemical / Chemical Industry
Media

Introduction

A valve designed to maintain constant fluid pressure and control it stably in piping systems.

It operates to maintain the set pressure despite pressure fluctuations on the inlet side, supporting stable system operation and equipment protection.

Through precise pressure control function, it prevents equipment damage caused by overpressure and maintains stable fluid flow, providing highly reliable performance in various industrial environments.
