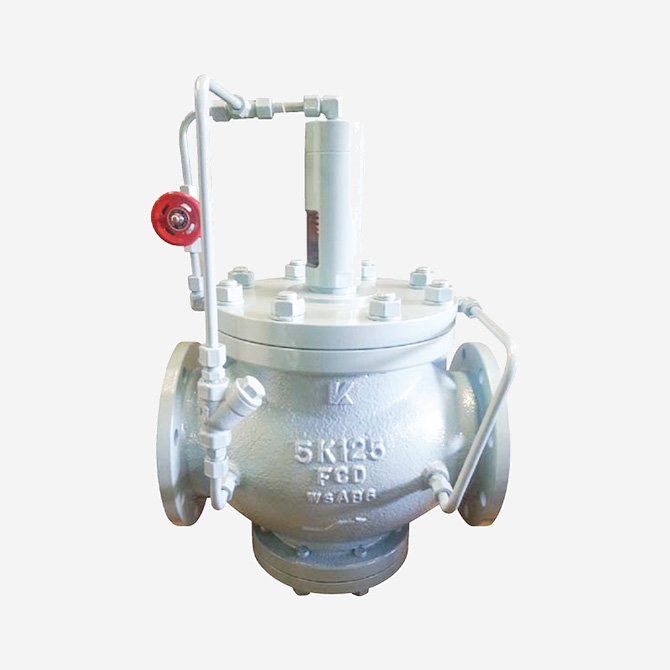

Primary Pressure Regulating Valve
Pilot Type
| MODEL | KA360-PL |
|---|---|
| Size | 50A ~ 250A |
| Material | Stainless Steel / SC480 / FCD / BC6 |
| Nominal Working Pressure | 16bar |
| Hydrostatic Test Pressure | Working Pressure x1.5 |
| Setting Range | 1~16bar |
| Design Temperature | 0°C to +150°C |
| Media | Water, Oil, Steam |
| End Connection | Flange |
| Option | Internal Sensing |
| Application | Engine Room of Ship / Oil & Gas / Petrochemical / Chemical Industry |
Introduction
A valve designed to maintain constant fluid pressure and control it stably in piping systems.
It operates to maintain the set pressure despite pressure fluctuations on the inlet side, supporting stable system operation and equipment protection.
Through precise pressure control function, it prevents equipment damage caused by overpressure and maintains stable fluid flow, providing highly reliable performance in various industrial environments.
