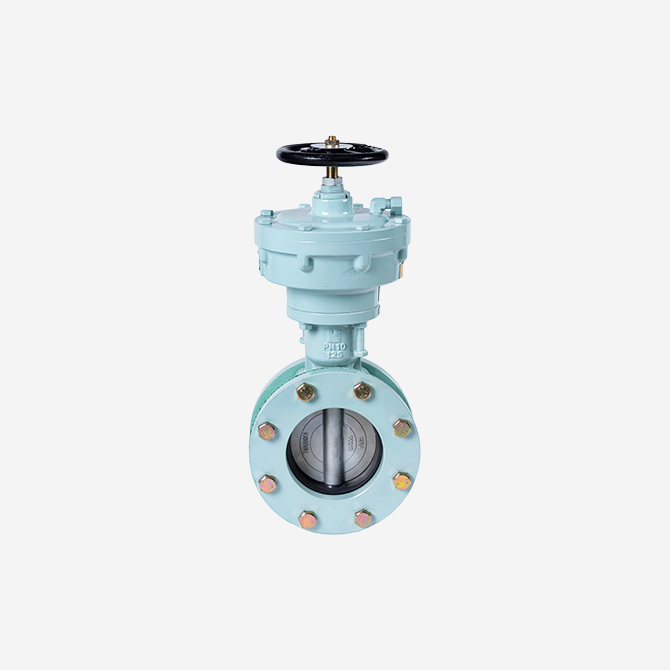

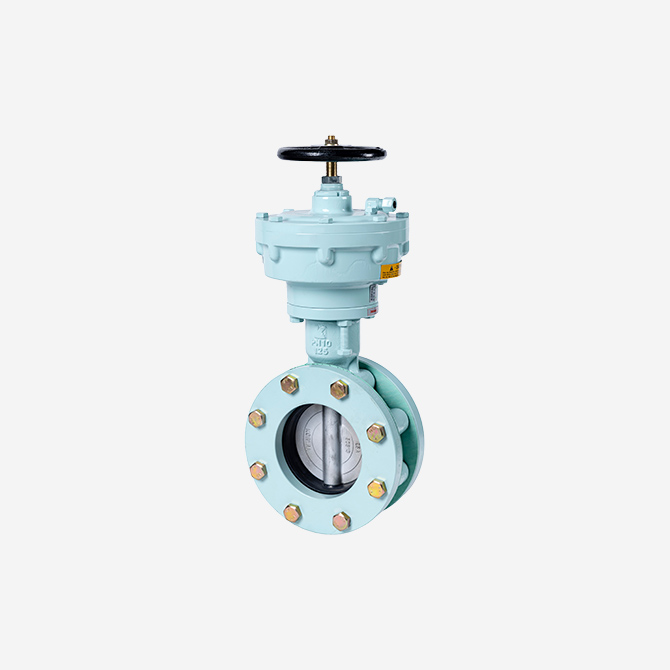

C/W Shut Off Valve
C.W Shut Off Valve
| MODEL | KC2S0 |
|---|---|
| Size | 65A ~ 150A |
| Material | FCD400 / FCD450 |
| Nominal Working Pressure | 10bar |
| Valve Type | Butterfly - Full Lug |
| Actuator Type | Hydraulic Single Acting |
| Actuator Operation | Start Open Pressure : 2.7bar(±10%) Full Close Pressure : 2.0bar(±10%) |
| Design Temperature | -10°C to +60°C |
| Media | Lubrication Oil |
| End Connection | Flange |
| Vibration | Considered |
| Application | 4-Stroke Engine |
Introduction
A valve used to shut off or control fluid flow in cooling systems.
It supports stable operation of cooling water lines and is designed to quickly and safely shut off coolant supply during maintenance and inspection.
With a robust structure and reliable sealing performance, it ensures stable operation in marine engine systems, industrial facilities, and various cooling water piping systems.
The C.W Shut-off Valve is applied in various fields, such as engine cooling systems, heat exchangers, power generation facilities, and industrial cooling water pipelines, supporting efficient fluid control and equipment protection.
