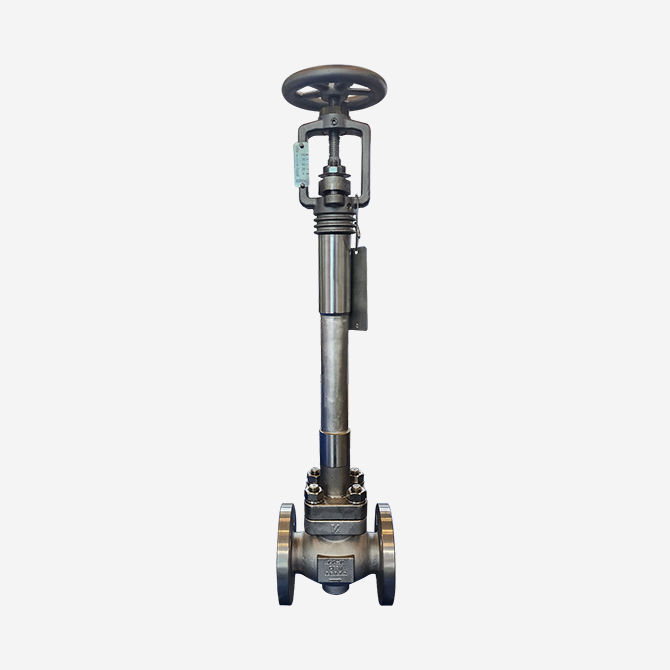

Cryogenic Globe Valve
Manual Needle Type
| MODEL | KM141 |
|---|---|
| Service | LNG, LN2, LH2 and other Cryogenic Gas/Liquid |
| Temperature Range | -196 °C ~ 80 °C |
| Pressure Rating | Class 150 ~ 2500 |
| Size Range | 1/2″ ~ 24″ |
| Material | Stainless Steel |
| Seat Material | Metal |
| Operation | Handwheel / Gear Operated |
| End Connection | Flanged / Butt Weld / Socket Weld / Threaded |
| Feature | Bi-Directional Flow / Fire-Safe Design / Anti-Static / Low Emission Packing |
| Leakage Class | API598 / BS6364 / ISO 28921-1 / MSS SP-134 |
| Application | LNG Carrier, FSRU, FLNG, LNG Terminal, LNG DF Vessel, Oxygen Plant Etc. |
Introduction
A valve designed for stable control of LNG and specialty gases in cryogenic environments below -196°C, offering excellent sealing performance and precise flow control.
Its compact structure ensures high durability, while the extended stem (bonnet extension) protects the packing from low temperatures and delivers reliable shut-off performance.
