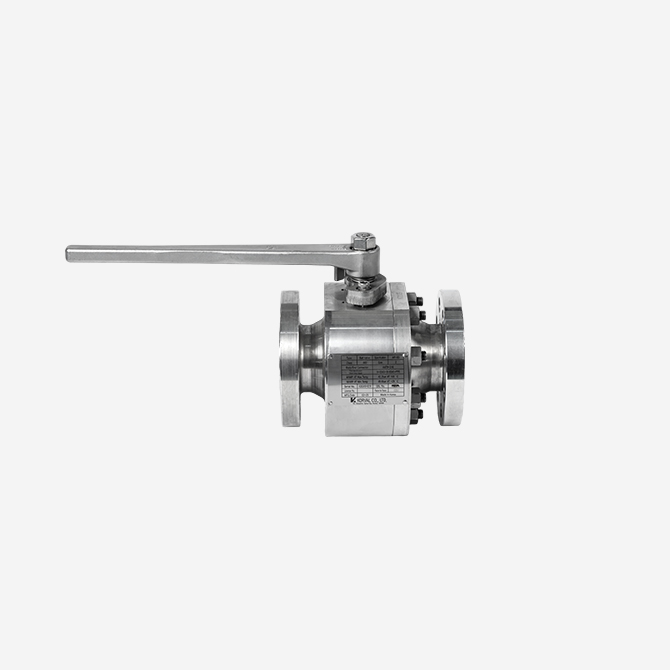

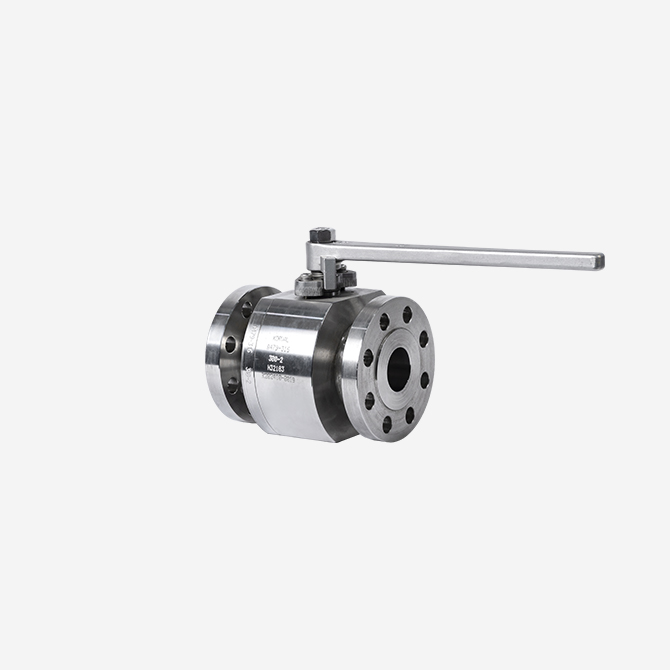

Ball Valve
Manual Type / Pneumatic Cylinder Type / Hydraulic Cylinder Type
MODEL KM170 / KM170-APC / KM170-AHC
타입 Manual Type / Pneumatic Cylinder Type / Hydraulic Cylinder Type
Service NG, N2, H2, O2, CO2, Water, Steam
Temperature Range -20 °C ~ 250 °C
Pressure Rating Class 150 ~ 2500
Size Range 1/2″ ~ 24″
Valve Design Floating / Trunnion / Wedge
Material Carbon Steel, Stainless Steel
Seat Material Soft Seat (PTFE/RTFE/Nylon/Devlon/PEEK) or Metal
Operation Lever / Gear Operated / Pneumatic Cylinder / Hydraulic Cylinder
End Connection Flanged / Butt Weld / Socket Weld / Threaded
Feature Bi-Directional Flow / Fire-Safe Design / Anti-Static /
Low Emission Packing
Leakage Class API598 / ASME B16.34
Application Oil & Gas / Petrochemical / Chemical / Process Industry
Seat Material

Introduction

With a 90-degree rotation, it enables quick operation and ease of use, while offering excellent sealing performance with minimal leakage risk.

Its low flow resistance makes it suitable for high-pressure and high-flow systems, and its simple, robust structure ensures easy maintenance.
