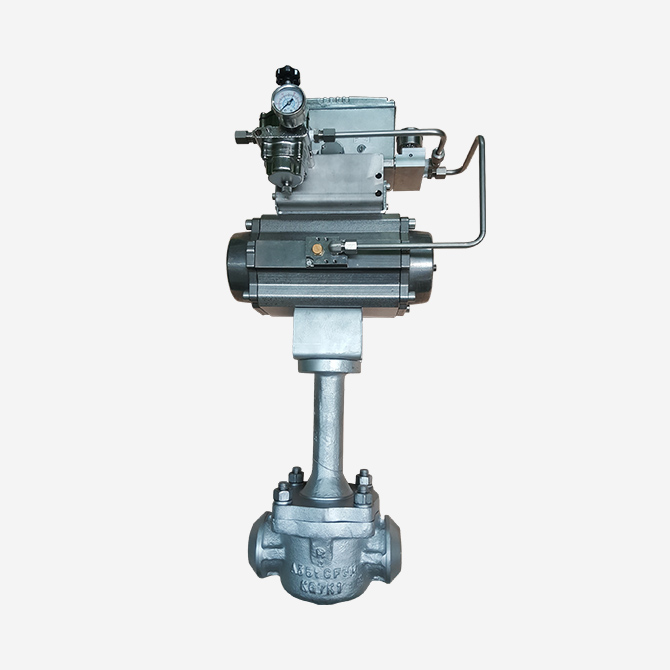

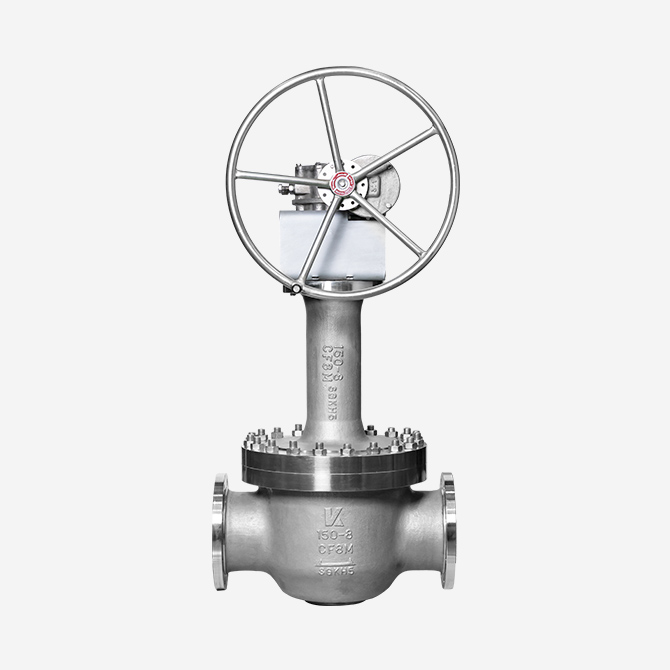

Cryogenic Ball Valve
Manual Type / Pneumatic Cylinder Type / Hydraulic Cylinder Type
MODEL KM171-APC / KM171-APC / KM171-AHC
타입 Manual Type / Pneumatic Cylinder Type / Hydraulic Cylinder Type
Service LNG, LN2, LH2 and other Cryogenic Gas/Liquid
Temperature Range -196 °C ~ 80 °C
Pressure Rating Class 150 ~ 2500
Size Range 1/2″ ~ 24″
Valve Design Floating / Trunnion / Wedge
Material Stainless Steel
Seat Material Soft Seat (PTFE/PCTFE)
Operation Lever / Gear Operated / Pneumatic Cylinder / Hydraulic Cylinder
End Connection Flanged / Butt Weld / Socket Weld / Threaded
Feature Bi-Directional Flow / Fire-Safe Design / Anti-Static /
Low Emission Packing
Leakage Class API598 / BS6364 / ISO 28921-1 / MSS SP-134
Application LNG Carrier, FSRU, FLNG, LNG Terminal, LNG DF Vessel, Oxygen Plant Etc.
Seat Material

Introduction

A valve designed to safely control LNG, liquid oxygen, and similar media in cryogenic environments below -196°C.

Its extended bonnet structure prevents external heat ingress, protecting the stem from freezing, while offering high sealing performance and low pressure loss through quick 90-degree quarter-turn operation.
