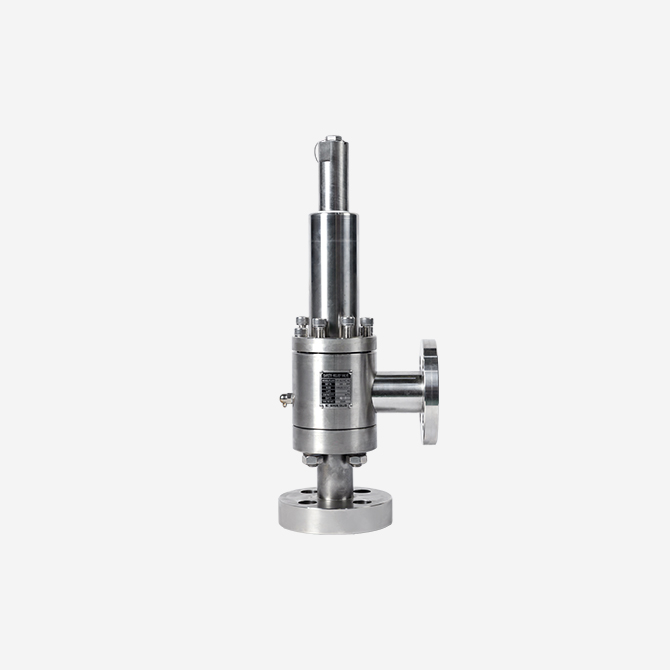

Cryogenic Safety Valve
Spring Type Safety Valve
| MODEL | KC721 |
|---|---|
| Service | LNG, LN2, LH2 and other Cryogenic Gas/Liquid |
| Temperature Range | -196 °C ~ 80 °C |
| Pressure Rating | Class 150 ~ 2500 |
| Size Range | 1/2″x1″ ~ 6″x8″ |
| Setting Range | 0.01 ~ 420 Barg |
| Valve Type | Spring |
| Material | Stainless Steel |
| Seat Material | Metal / Soft |
| End Connection | Flanged |
| Leakage Class | API 526, BS6364 |
| Application | LNG Carrier, FSRU, FLNG, LNG Terminal, LNG DF Vessel, Oxygen Plant Etc. |
Introduction
A safety valve designed to safely relieve overpressure in cryogenic fluid processes such as LNG, liquid nitrogen (LN₂), and liquid oxygen (LO₂).
It provides stable operation and high reliability even under extreme low-temperature conditions, ensuring process safety.
