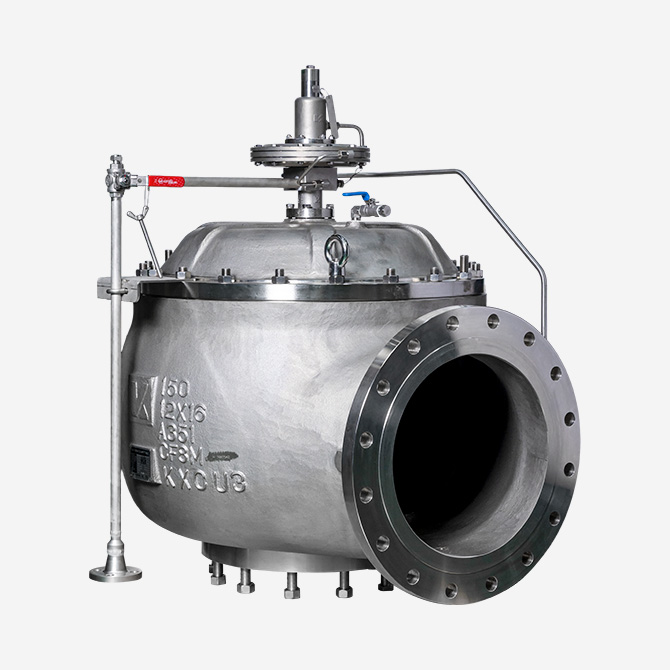

Cryogenic Safety Valve
Pilot Type Safety Valve
MODEL KC711-ALD
타입 Pilot Type Safety Valve
Service LNG, LN2, LH2 and other Cryogenic Gas/Liquid
Temperature Range -196 °C ~ 80 °C
Pressure Rating Class 150
Size Range 2″x3″ ~ 14″x18″
Setting Range 0.01 ~ 1 Barg
Valve Type Pilot
Material Stainless Steel
Seat Material Metal / Soft
End Connection Flanged
Feature Dual Setting
Leakage Class API 526, BS6364
Application LNG Carrier, FSRU, FLNG, LNG Terminal, LNG DF Vessel, Oxygen Plant Etc.
Seat Material

Introduction

A safety valve designed to safely relieve overpressure in cryogenic fluid processes such as LNG, liquid nitrogen (LN₂), and liquid oxygen (LO₂).

It provides stable operation and high reliability even under extreme low-temperature conditions, ensuring process safety.
