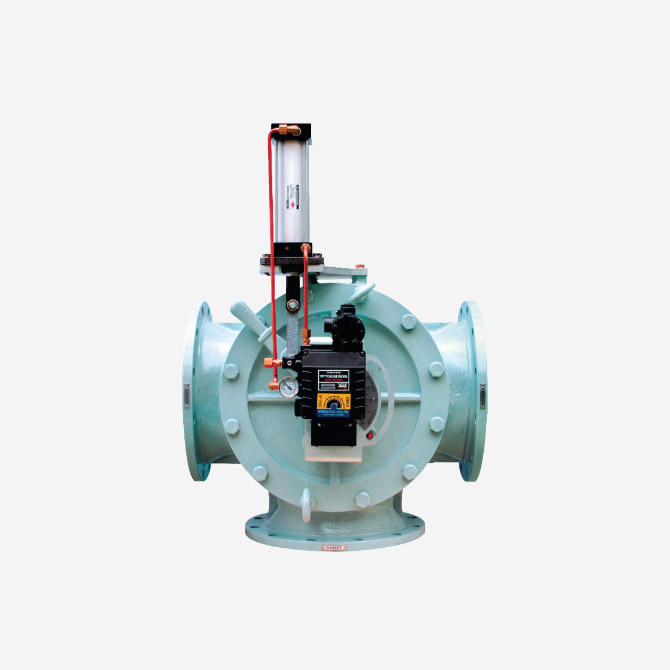

3way Rotary Valve
Pneumatic Cylinder Type
MODEL KC270-APD
타입 Pneumatic Cylinder Type
Service Steam, Water, Oil
Temperature Range -20 °C ~ 200 °C
Pressure Rating Class 150
Size Range 1/2″ ~ 24″
Operation Type Mixing / Dividing
Material FCD, Carbon Steel
Seat Material Metal
Operation Pneumatic Cylinder
End Connection Flanged
Leakage Class Less than 1.2% rated Cv value
Application Oil & Gas / Petrochemical / Chemical / Process Industry
Seat Material

Introduction

Featuring a rotary flow-switching design, it achieves both low pressure loss and excellent control performance.

It ensures high durability and reliability, even in systems with frequent process switching.
